Reliable Material Handling for Efficient Operations

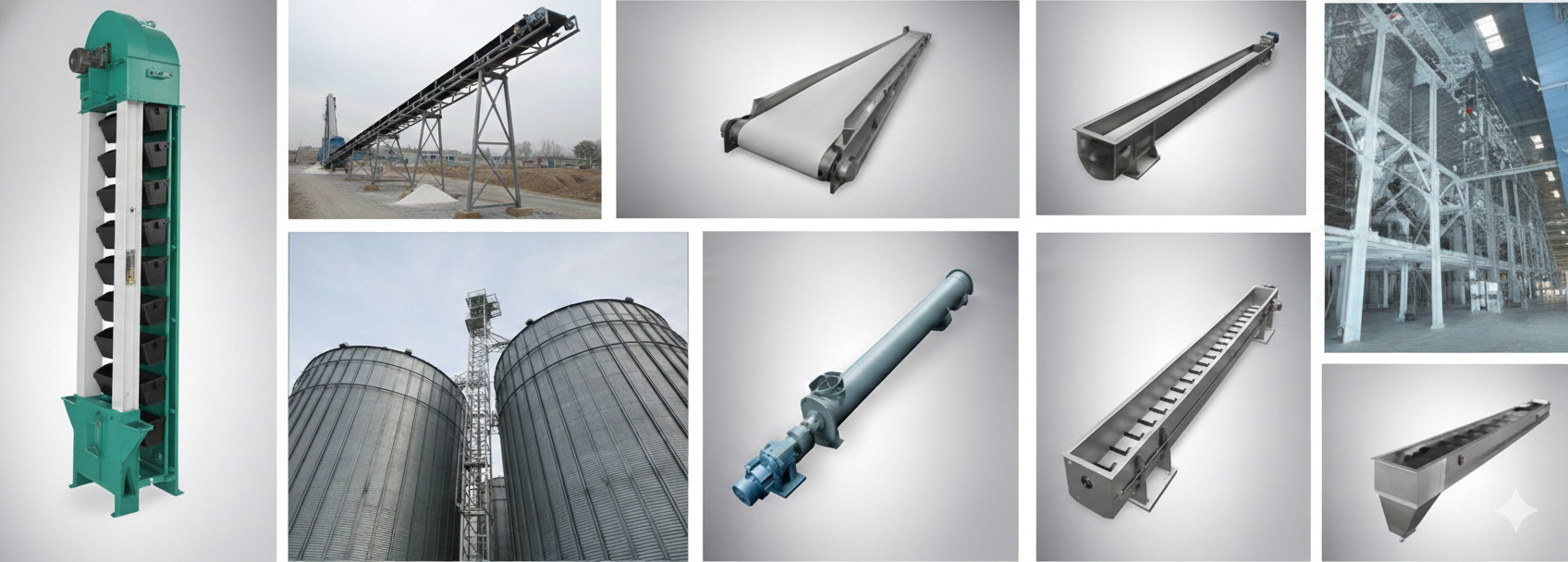

Jyoti has been the ultimate manufacturers of vertical / horizontal transport systems such as bucket elevators and Conveyors for a very long time. We deliver bucket elevators for all bulk goods that have to remain undamaged during vertical transport. These bucket elevators are applied in a wide range of industries: from Cereals, pharmacy, food, animal feed to building materials and chemical products. Our range of products features rugged, low-maintenance components made from top quality materials and product-friendly technology.

Consequences of parboiling

Gentle Handling Fragile products can be handled without product degradation.
Safe High operational reliability thanks to effective safety features
Versatile Serves a variety of industries and products – foods, chemicals, plastics, and more!
Energy Efficient Most elevators run on fractional horse power motors
Long Life Cycle Life span is measured in decades rather than years!

Sectors We Serve

Belt Conveying System

The belt conveying system is designed for smooth, gentle, and efficient material transport, suitable for a wide range of bulk and food-grade applications. It ensures controlled material flow while maintaining product quality and cleanliness.

Belt Conveyor Types

Belt Conveyor Features

Flanged inlets complete with skirt board rubber ensure proper and controlled flow of material onto the belt.
The discharge spout is designed for smooth transfer of material from conveyors into controlled openings such as bucket elevators or other conveyors.
Top covers protect both the belt and the conveyed product from environmental exposure while also providing effective dust control.
The gear reducer drive system includes a right-angle gear reducer with roller chain final drive or a shaft-mounted gear reducer with a foot-mounted motor, making it suitable for heavy-duty operations and applications requiring slow belt speeds.
A high-clearance package is available for handling bulky or large materials such as ear corn or recyclables, featuring high sidewalls or covers, an open throat inlet hopper, and a raised motor mount tailored to specific application requirements.
Full-length skirting ensures proper material flow onto the belt across multiple inlet points, reducing spillage and improving overall conveying efficiency.

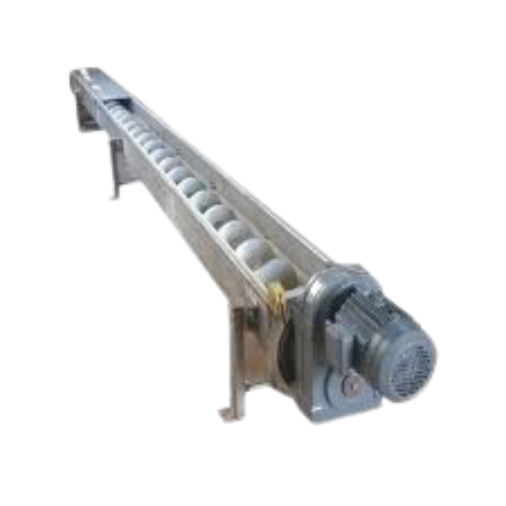

Screw Conveying System

The screw conveying system is designed for controlled and efficient movement of powders, granules, and semi-solid materials. Its robust construction and modular design make it ideal for continuous operation across various industries.

Material & Construction Options

Galvanized sheet steel is available for outdoor applications, stainless steel for food-grade and wet processing, and powder-coated construction for indoor installations.

Screw Conveyor Types

Belt Conveyor Features

Deep “U” type trough fabricated from suitable gauge, high-quality steel and flanged for accurate assembly.
Modular design with bolted top cover sections for easy inspection and maintenance.
Tapered worm designs with extended flanged inlets available for special applications.
Screw mounted on a seamless tubular shaft with sleeved and machined ends for precise fitting.
Alternative flight designs and tubular augers available to suit specific material handling requirements.
Standard flanged inlet and outlet arrangements, supplied loose or customized for site adjustments.
All screw conveyors are shop-assembled to ensure correct alignment and perfect fitting.
Assemblies are carefully labeled and packed section-wise prior to dispatch to suit site conditions and transportation requirements.

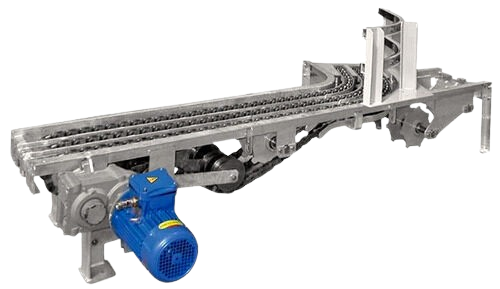

Chain Conveying System

Chain conveying systems are engineered for heavy-duty material handling where durability, controlled flow, and long service life are critical. These systems are suitable for abrasive, hot, or bulk materials.

Chain Conveyor Types

Chain Conveyor Features

Conveyor casing fabricated from suitable gauge, high-quality steel, stiffened and flanged for accurate assembly.
Modular design with bolted top covers for easy inspection and maintenance.
UHMWPE support strips available on request to reduce friction, noise, and wear, significantly extending casing life.
Standard flanged inlet and outlet connections, available for loose supply or customized for site requirements.
Supports motorized, electro-pneumatic, or rack-and-pinion operation.
Tail-end shaft fitted with a rotation detector for PLC interfacing.
Special heat-treated alloy steel chains with advanced flight fixing arrangements for high strength and reliability.
Chain tension maintained using double acme threaded screws and self-aligning adjusters at the tail end.
All chain conveyors are shop-assembled, thoroughly checked for alignment, and packed section-wise for easy transportation and installation.

Elevator Technical Solution

Top Section

Hollow shaft mounted gear with standard motor
Backstop device to prevent reverse movement
Turnable outlet for 45° or vertical discharge
Heavily stiffened head section made from high-thickness steel
Oversized discharge with wear-resistant internal liner for gentle handling
Split steel upper cover for easy inspection and maintenance
Dust-protected ball or roller bearing pillow blocks
Crown-faced heavy-gauge head pulley

Elevator Belt

Drive System

Casing

Heavy-duty steel construction (1.5 mm thickness, size dependent)
Flanged sections for dust-tight assembly and easy alignment
Bolted access panels for bucket installation and maintenance
Standard lengths with height adjustment sections
Bolted access panels for bucket installation and maintenance
Heavy-gauge trunking available in single or double leg design

Elevator Buckets

Fasteners
